Sectional Hot Stick
Sectional Hot Stick
Sectional Hot Stick. The Hot Stick from TECMARQUES, is developed with modern technology, standing out for its quality and ease of maneuvering in the opening and closing of switches, in the operation of temporary grounding and similar tasks; on overhead transmission lines, substations, distribution, power plants, industries, etc.

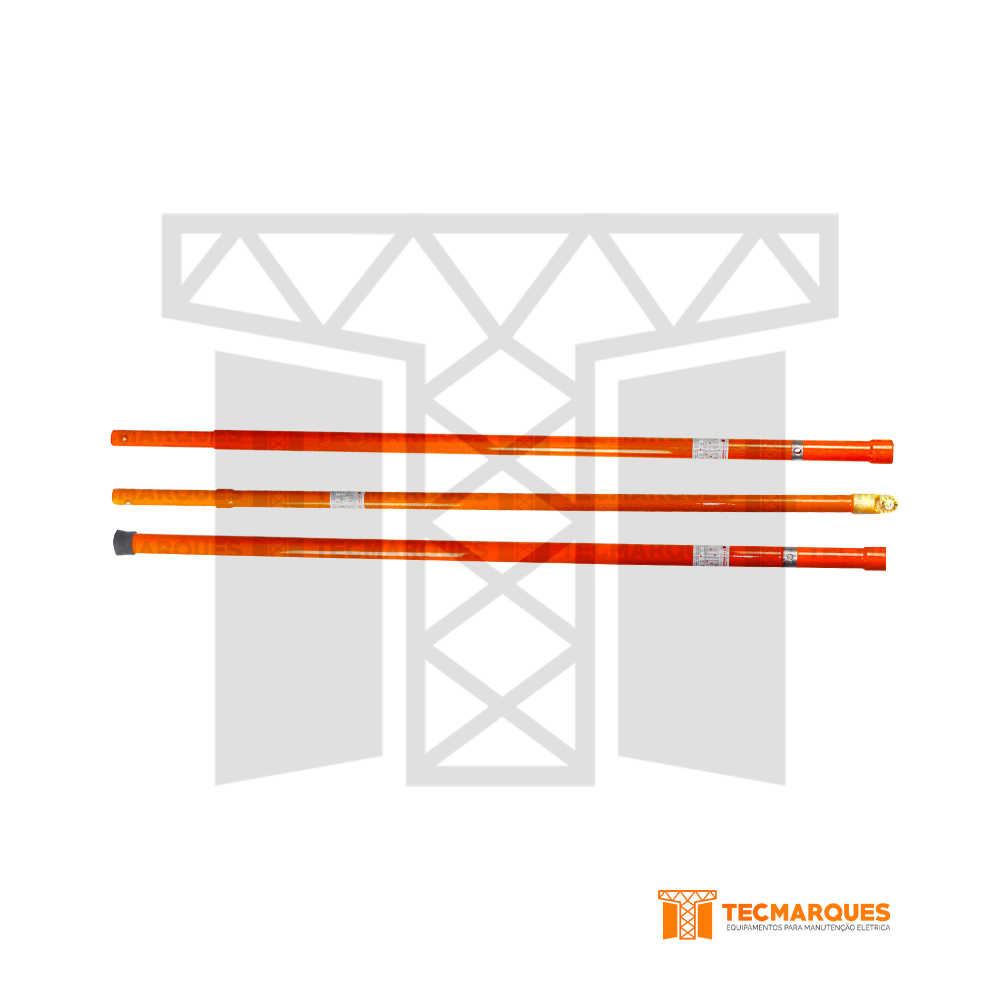

Made of fiberglass and impregnated with epoxy resin and internally protected with a polyurethane core. It is formed by standardized, sectional and interchangeable sections, which facilitates the handling, transport and storage of the sticks. The sections are attachable through fitting, with
Models
Especificações
Seccionáveis
Models
| Reference | Description |

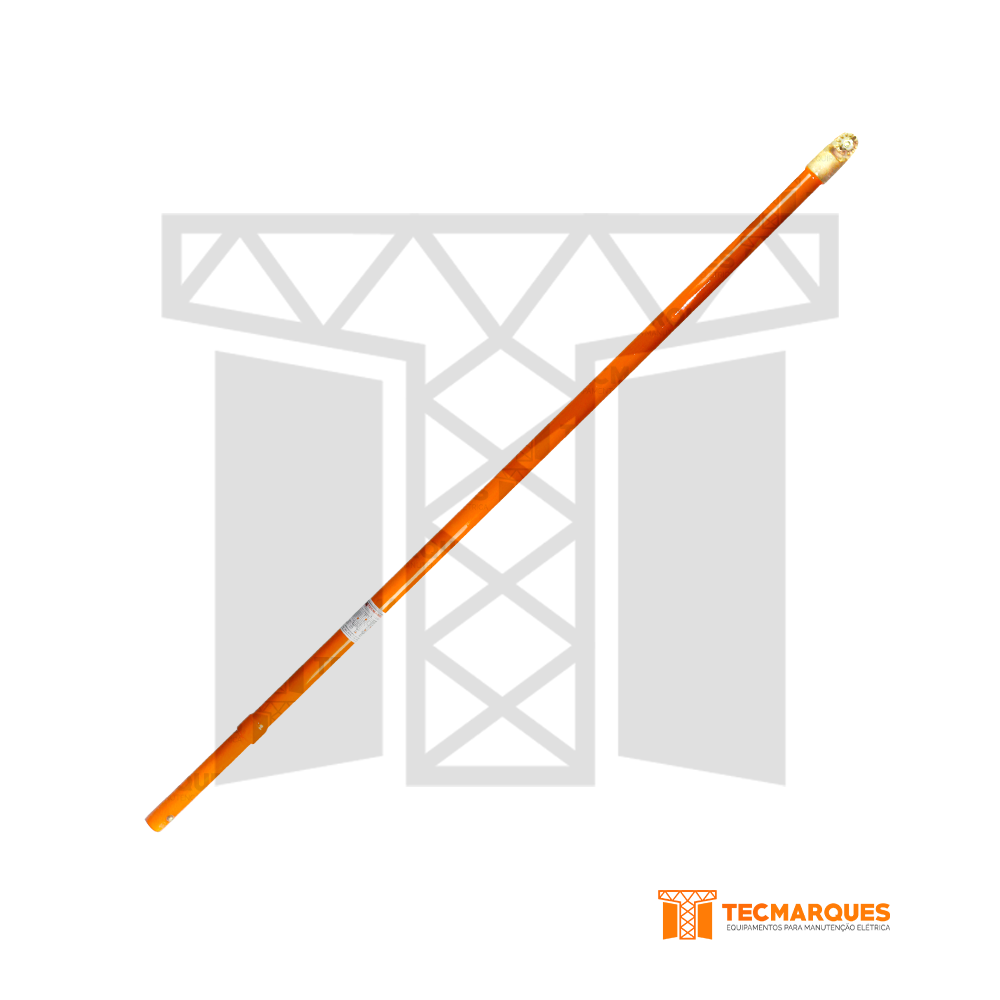

| TM12160101 | Tip element for switch stick d32mm x work. length 1250mm x overall length 1450mm |
| TM12160102 | Light tip element for switch stick d25mm x work. length 1250mm x overall length 1450mm |

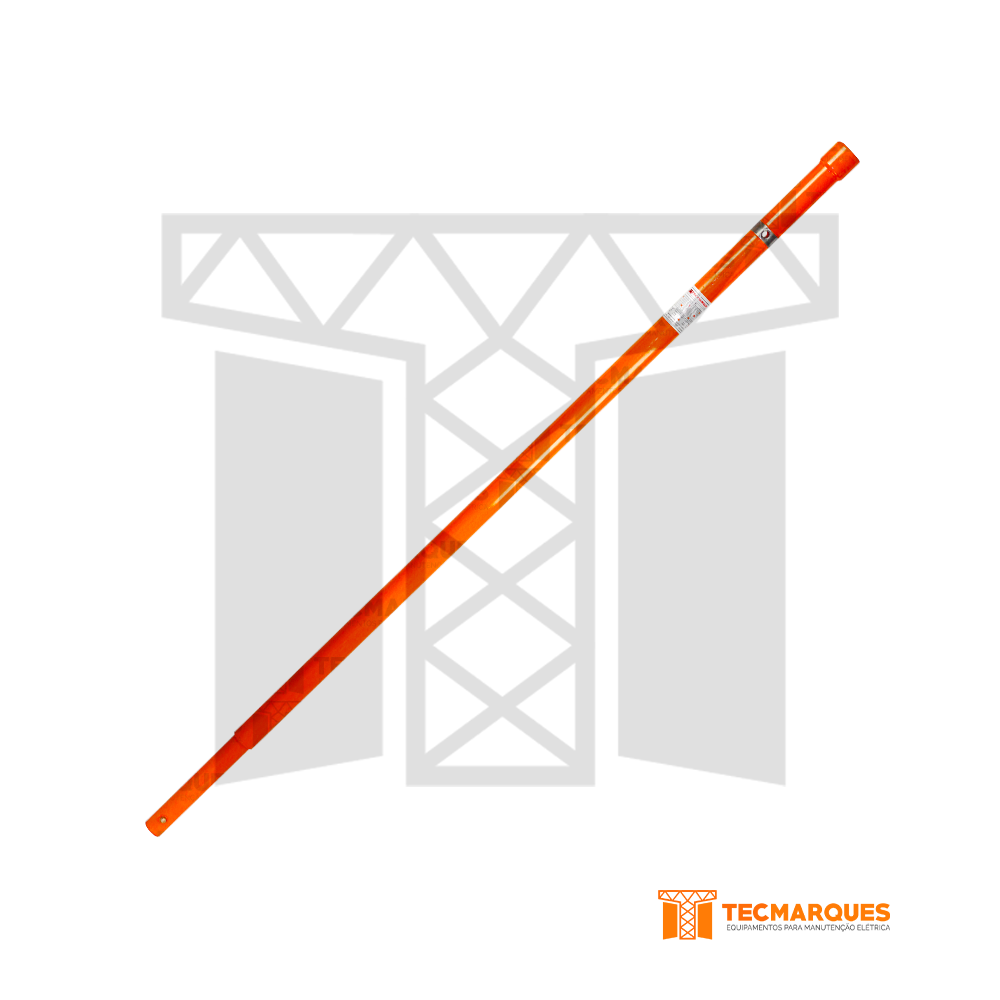

| TM12160103 | Intermediate element for switch stick d38mm x work. length 1250mm x overall length 1450mm |
| TM12160104 | Light interm.ediate element for switch stick d32mm x work. length 1250mm x overall length 1450mm |

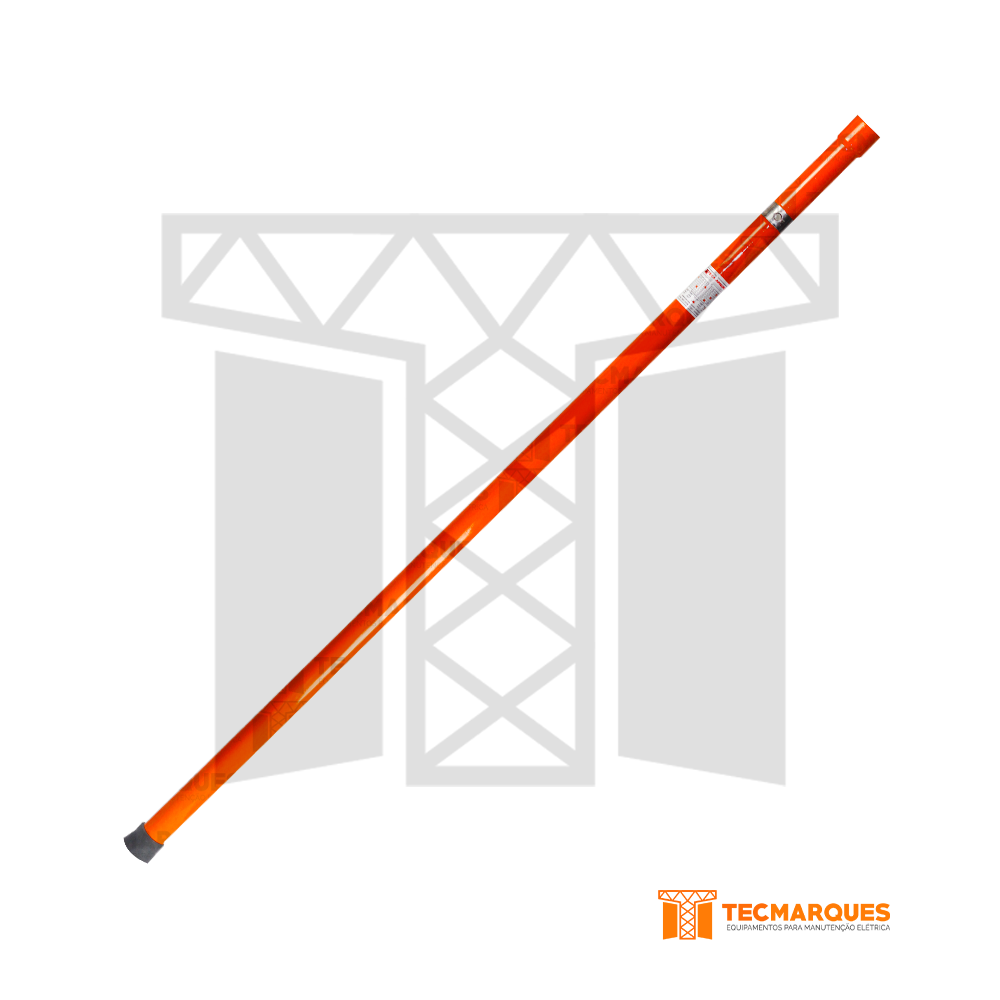

| TM12160105 | Handle elem.ent for switch stick d38mm x work. length 1450mm x overall length 1450mm |
| TM12160106 | Light handle element for switch stick d32mm x work. length 1450mm x overall length 1450mm |
| TM12160201 | Sectional switch stick 1 element (1 handle d32mm max. length 1250mm) |
| TM12160202 | Sectional switch stick 1 element (1 handle d25mm max. length 1250mm) |
| TM12160203 | Sectional switch stick 2 element (1 handle d38mm, 1 tip d32mm max. length 2700mm) |
| TM12160204 | Sectional switch stick 2 element (1 handle d32mm, 1 tip d25mm max. length 2700mm) |
| TM12160205 | Sectional switch stick 3 element (1 handle d38mm, 1 interm. d38mm, 1 tip d32mm max. length 3950mm) |
| TM12160206 | Sectional switch stick 3 element (1 handle d32mm, 1 interm. d32mm, 1 tip d25mm max. length 3950mm) |
| TM12160207 | Sectional switch stick 4 element (1 handle d38mm, 2 interm. d38mm, 1 tip d32mm max. length 5200mm) |
| TM12160208 | Sectional switch stick 4 element (1 handle d32mm, 2 interm. d32mm, 1 tip d25mm max. length 5200mm) |
| TM12160209 | Sectional switch stick 5 element (1 handle d38mm, 3 interm. d38mm, 1 tip d32mm max. length 6450mm) |
| TM12160210 | Sectional switch stick 5 element (1 handle d32mm, 3 interm. d32mm, 1 tip d25mm max. length 6450mm) |
Especificações
| Reference | Element | Diameter (mm) | Working Length (mm) | Overall Length (mm) | Approx. Weight | |
| Kg | lb | |||||
| TM12160101 | Tip | 32 | 1250 | 1450 | 1,15 | 2,54 |
| TM12160102 | Tip (Light) | 25 | 1250 | 1450 | 0,85 | 1,87 |
| TM12160103 | Intermediate | 38 | 1250 | 1450 | 1,20 | 2,65 |
| TM12160104 | Intermediate (Light) | 32 | 1250 | 1450 | 0,80 | 1,76 |
| TM12160105 | Handle | 38 | 1450 | 1450 | 1,10 | 2,43 |
| TM12160106 | Handle (Light) | 32 | 1450 | 1450 | 0,70 | 1,54 |
Seccionáveis
| Reference | Number of Elements | Max. Length (mm) | Approx. Weight | |||||||
| Handle | Ø | Interm. | Ø | Tip | Ø | Total | Kg | lb | ||
| TM12160201 | 1 | 32 | – | – | – | – | 1 | 1250 | 0,95 | 2,09 |
| TM12160202 | 1 | 25 | – | – | – | – | 1 | 1250 | 0,75 | 1,65 |
| TM12160203 | 1 | 38 | – | – | 1 | 32 | 2 | 2700 | 2,25 | 4,96 |
| TM12160204 | 1 | 32 | – | – | 1 | 25 | 2 | 2700 | 1,55 | 3,42 |
| TM12160205 | 1 | 38 | 1 | 38 | 1 | 32 | 3 | 3950 | 3,45 | 7.61 |
| TM12160206 | 1 | 32 | 1 | 32 | 1 | 25 | 3 | 3950 | 2,35 | 5,16 |
| TM12160207 | 1 | 38 | 2 | 38 | 1 | 32 | 4 | 5200 | 4,65 | 10,25 |
| TM12160208 | 1 | 32 | 2 | 32 | 1 | 25 | 4 | 5200 | 3,15 | 6,94 |
| TM12160209 | 1 | 38 | 3 | 38 | 1 | 32 | 5 | 6450 | 5,65 | 12,90 |
| TM12160210 | 1 | 32 | 3 | 32 | 1 | 25 | 5 | 6450 | 3,95 | 8,71 |
