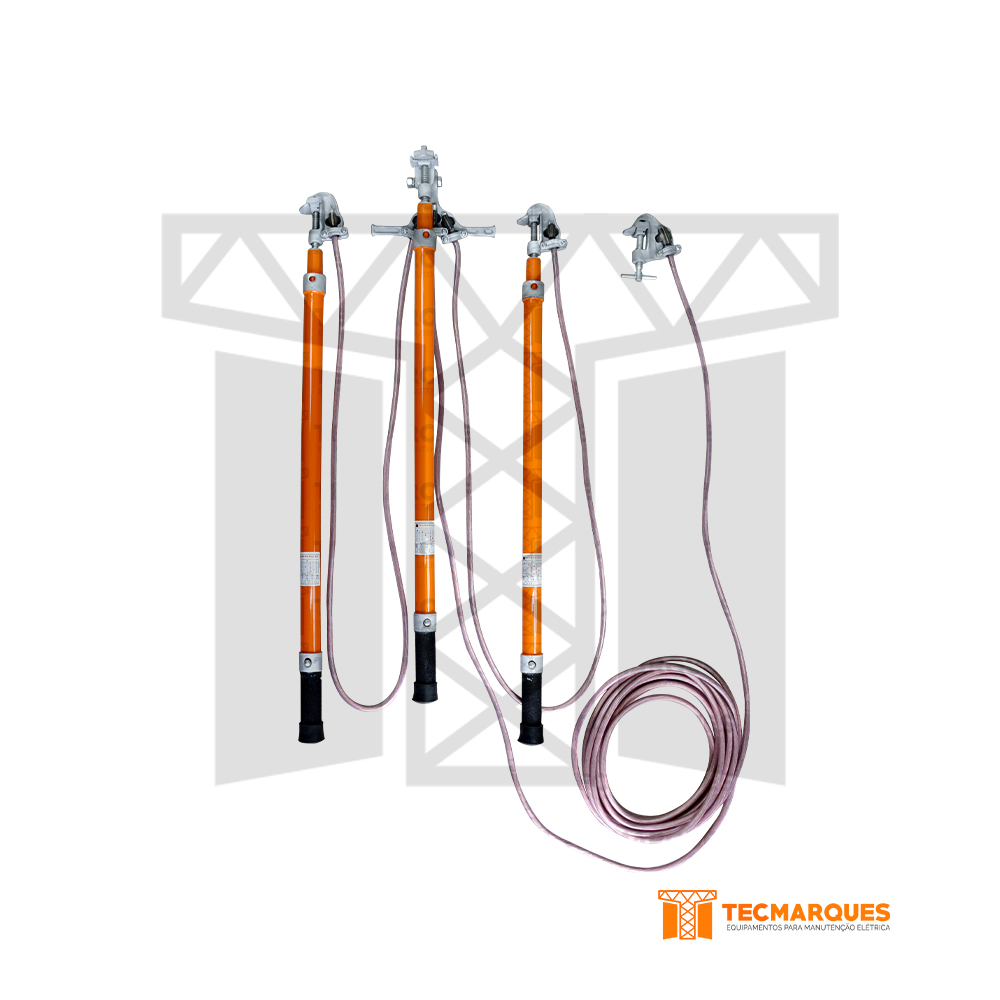

Temporary Grounding Set for Distribution Networks up to 36 kV (Three-phase), with Telescopic Sticks
Temporary Grounding Set for Distribution Networks up to 36 kV (Three-phase), with Telescopic Sticks
Models
Especificações
Models
| Reference | Description |
| TM12030201 | Temporary grounding set for distribution networks up to 36 kV (Three-phase), with telescopic sticks |
Especificações
| Item | Reference | Qty. | Unit | Description |
| 1 | PI1330005 | 3 | pc | Snap-on grounding clamp (C type), fixed on telescopic stick with 1,80 m extended length |
| 2 | PA0040010 | 1 | pc | Suspension ground cluster bar for simultaneous lifting of the phase clamps |
| 3 | PA0040011 | 1 | pc | Grounding clamp with “T” screw for connection to the auger |
| 4 | PA0040124 | 1 | pc | Grounding auger Ø 17 mm x 1,0 m with threaded bronze tip |
| 5 | C0450006 | 4 | m | Extra flexible copper cable, nominal section 35 mm², with transparent PVC insulation, consisting of 2 lengths of 2 m |
| 6 | C0450005 | 10 | m | Extra flexible copper cable, nominal section 25 mm², with transparent PVC insulation, 1 length |
| 7 | – | 4 | pc | Shrouded plain aluminum ferrule for cable 35 mm² |
| 8 | – | 2 | pc | Shrouded plain aluminum ferrule for cable 25 mm² |
| 9 | – | 6 | pc | Heat shrink |
| 10 | – | 1 | pc | Bag for storage and transport of the grounding set. |
| Maximum short-circuit current: at 30 cycles: 8 kA; at 60 cycles: 5 kA |
