← Back

Rope

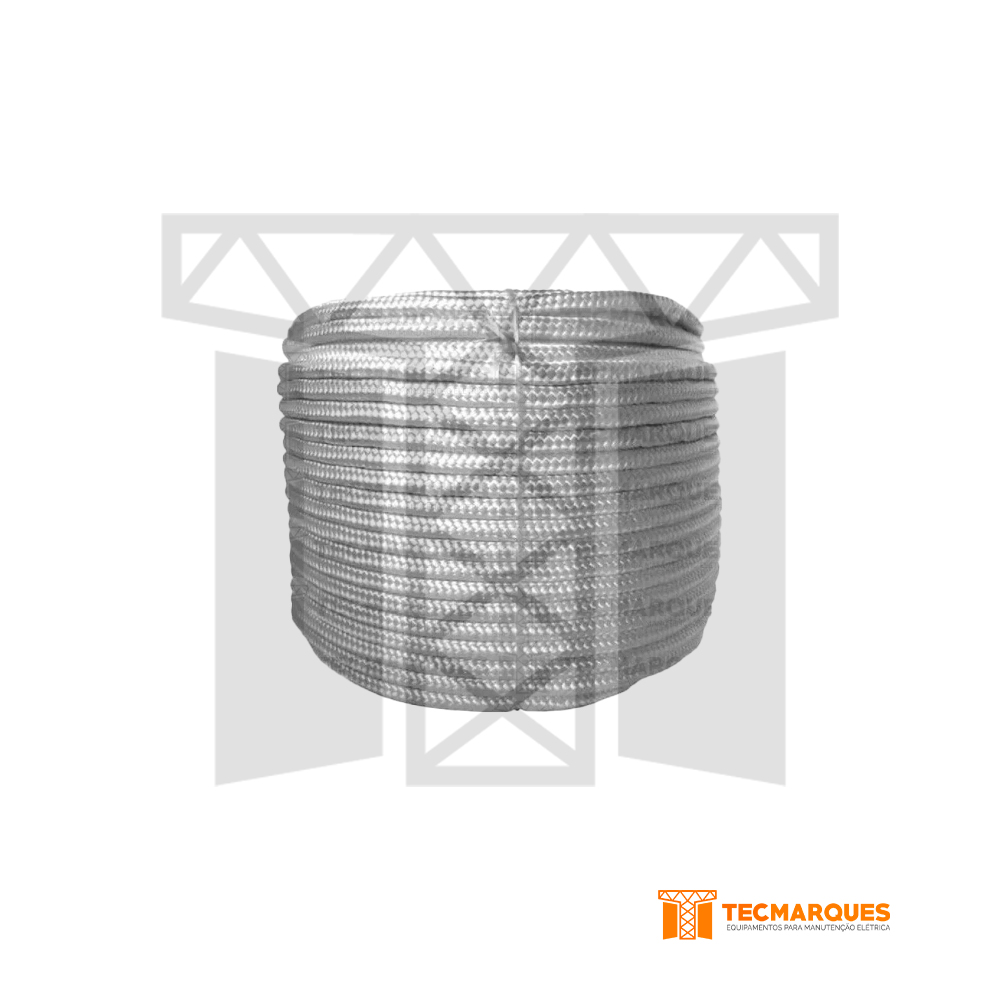

Rope. The rope is supplied in white, composed of polypropylene multifilaments, twisted in three strands

In case of direct contact with energized parts, the use of an insulating rope separator in series is necessary. This product is used in operations where it is essential to avoid electrical conduction through the rope, mainly in industrial and electrical network maintenance environments. The use of the insulating separator ensures the worker’s safety during activities on energized installations

Reference Description
TM01070101Rope
TM01070102Rope
TM01070103Rope
TM01070104Rope
TM01070105Rope
Reference Diameter Nominal
Working Capacity
Minimum Breaking Load Approx. Weight
(mm)(in)(daN)(lb)(daN)(lb)Kglb
TM010701016,001/4″10723653711840,020,04
TM010701029,503/8″230507115325420,040,09
TM0107010312,501/2″402886201044300,070,15
TM0107010415,505/8″5821283291064150,120,26
TM0107010519,003/4″7341618367080900,170,37
