Light Tensioner Set
Light Tensioner Set

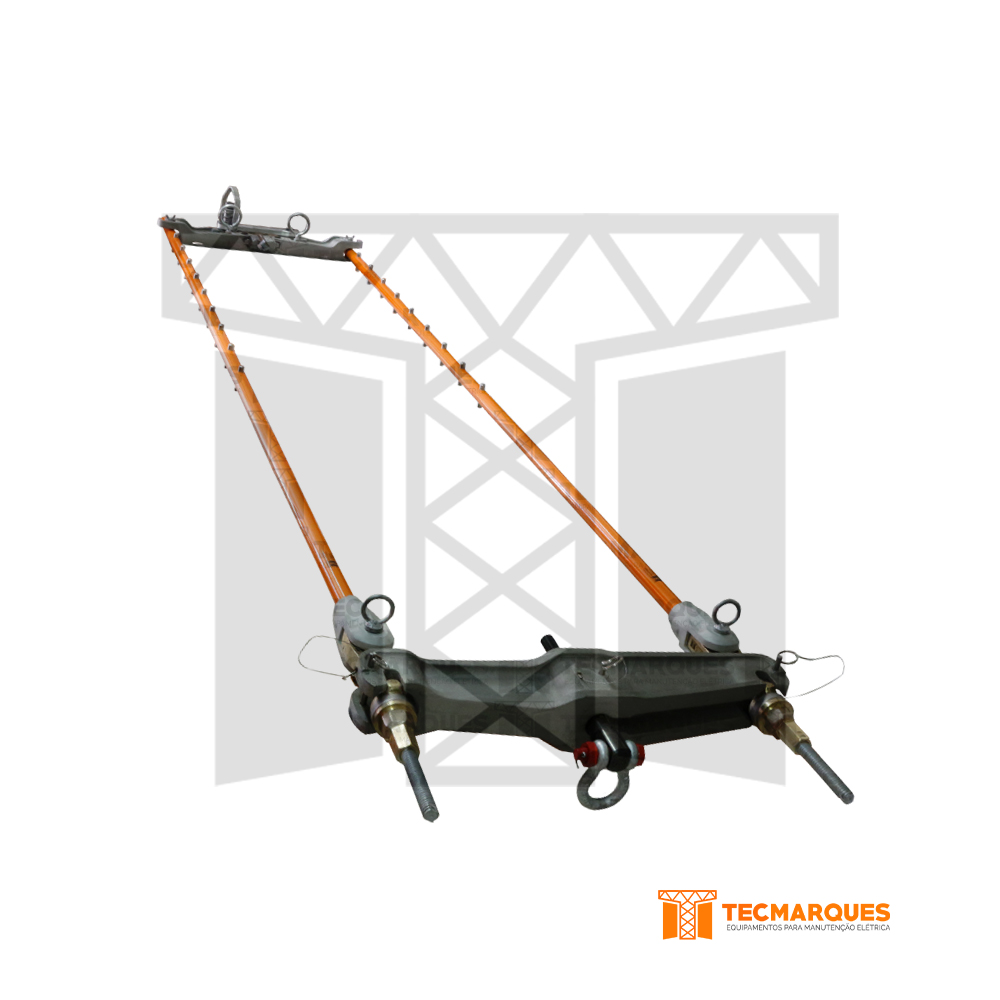

Light Tensioner Set. Designed to optimize the maintenance of anchoring and suspension insulator strings on transmission lines from 69 to 145 kV, this set stands out for its practicality and versatility, relieving mechanical tension for the removal of insulators. Composed of tools with excellent mechanical performance and reduced weight, it simplifies maintenance tasks, facilitating handling and transport.
Models
Especificações
Models
| Reference | Description |
| TM03180101 | Light tensioner set for anchoring from 69 to 145 kV and suspension from 110 to 145 kV on energized lines |

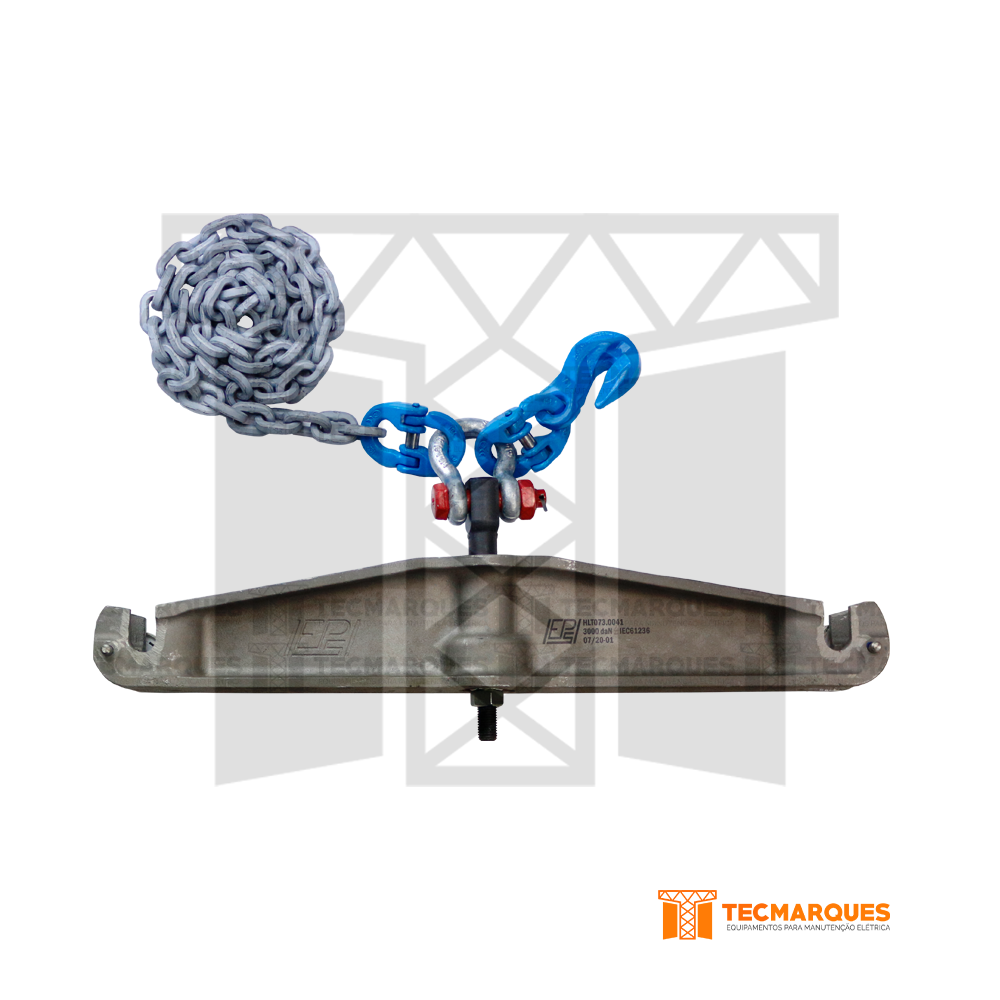

| TM03180301 | Dead-end side yoke, with fork bolt and chain |

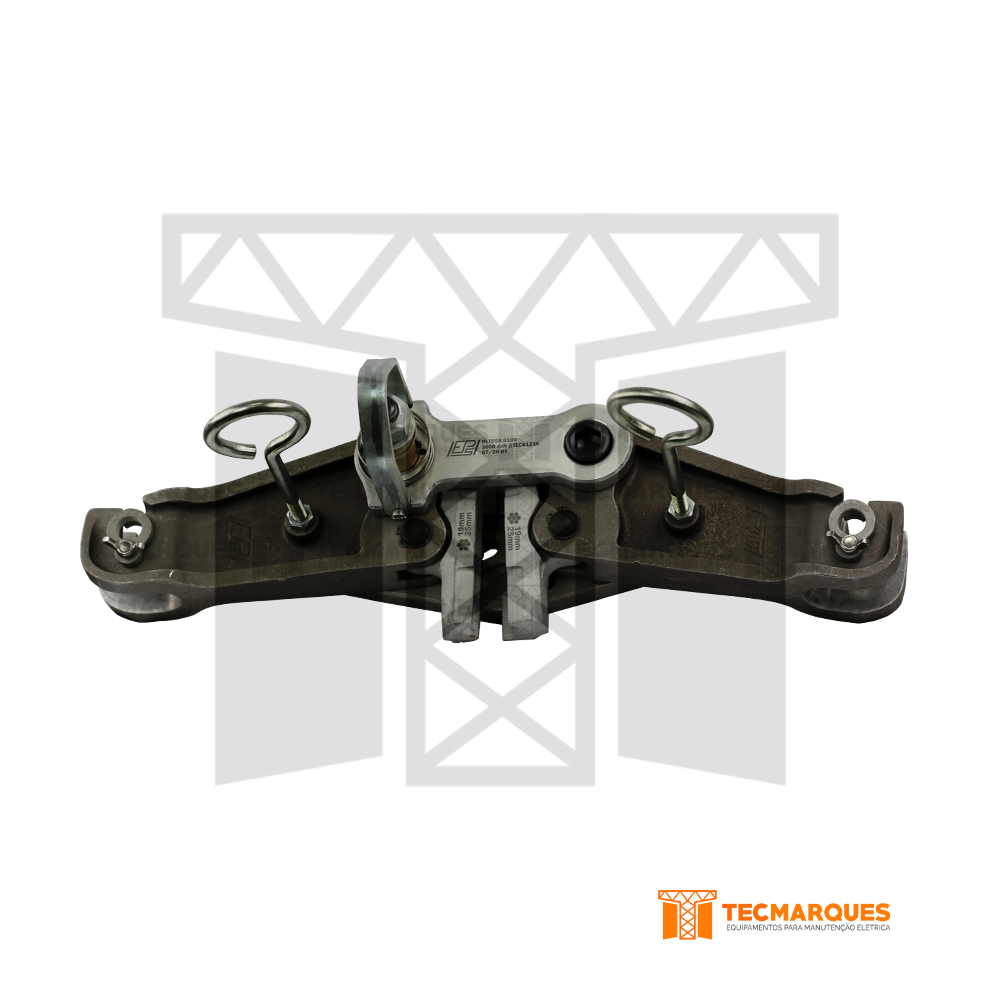

| TM03180304 | Live-side yoke with 2 pairs of jaws for ACSR cable, min 2 AWG (Ø 6,6 mm) to max 636 MCM (Ø 25 mm) |

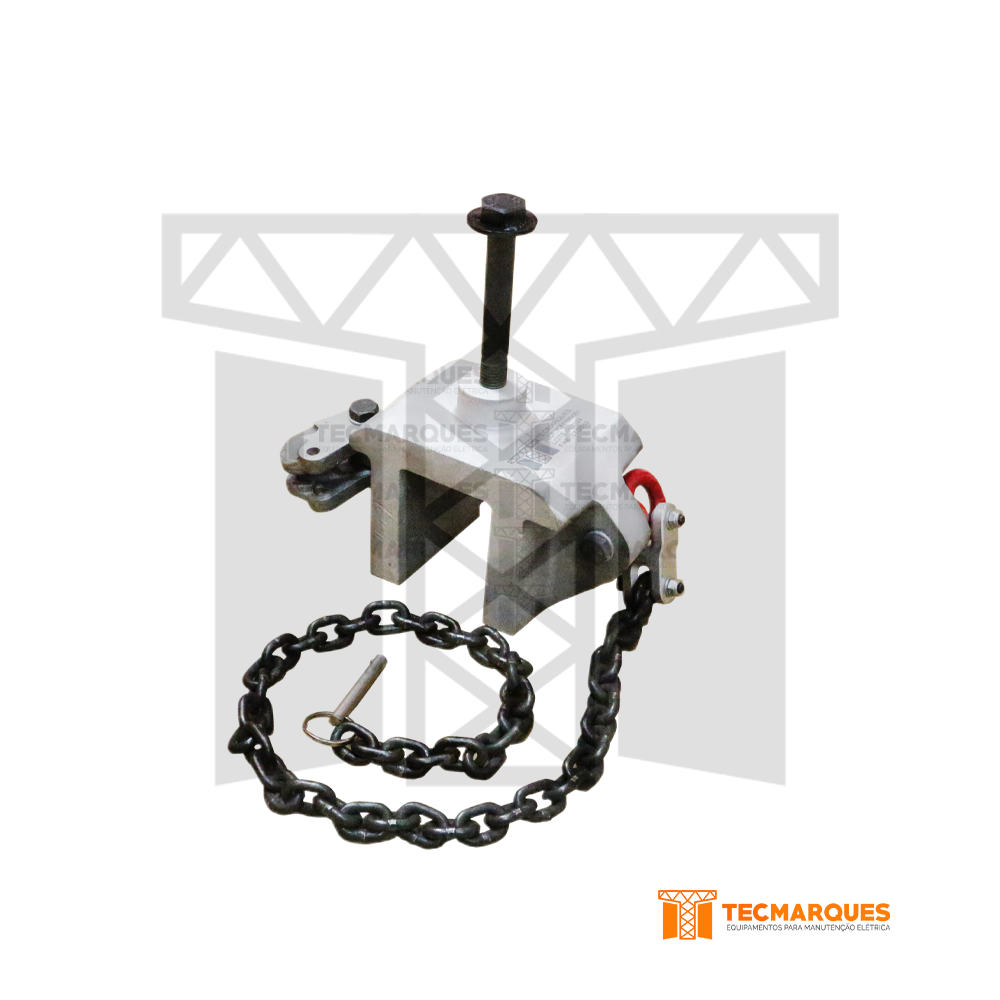

| TM03180401 | Cast aluminum alloy support for coupling to the bracket, by chain with hook, and safety lock |
Especificações
| Reference | Description | Approx. Weight(Kg) |
| TM03180301 | Dead-end side yoke, with fork bolt and chain | 8,10 |
| TM03180304 | Live-side yoke with 2 pairs of jaws for ACSR cable, min 2 AWG (Ø 6,6 mm) to max 636 MCM (Ø 25 mm) | 6,10 |
| TM03180401 | Cast aluminum alloy support for coupling to the bracket, by chain with hook, and safety lock | 3,40 |
| Reference | Description |
| TM03180101 | Light tensioner set for anchoring from 69 to 145 kV and suspension from 110 to 145 kV on energized lines |
| TM03180301 | Dead-end side yoke, with fork bolt and chain |
| TM03180304 | Live-side yoke with 2 pairs of jaws for ACSR cable, min 2 AWG (Ø 6,6 mm) to max 636 MCM (Ø 25 mm) |
| TM03180401 | Cast aluminum alloy support for coupling to the bracket, by chain with hook, and safety lock |
| Reference | Description | Approx. Weight(Kg) |
| TM03180301 | Dead-end side yoke, with fork bolt and chain | 8,10 |
| TM03180304 | Live-side yoke with 2 pairs of jaws for ACSR cable, min 2 AWG (Ø 6,6 mm) to max 636 MCM (Ø 25 mm) | 6,10 |
| TM03180401 | Cast aluminum alloy support for coupling to the bracket, by chain with hook, and safety lock | 3,40 |
