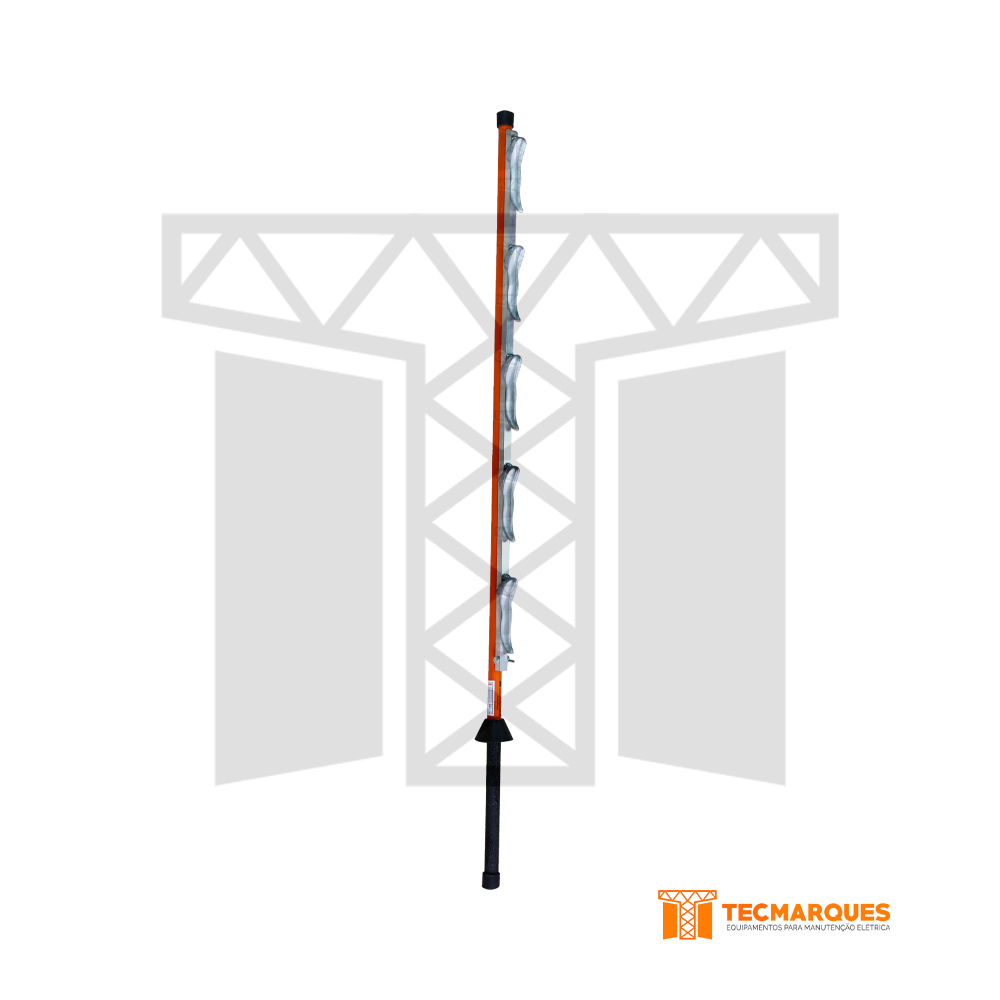

Temporary Earthing Stick for Secondary Networks (LV), with 5 Clamps
Temporary Earthing Stick for Secondary Networks (LV), with 5 Clamps
Temporary Earthing Stick for Secondary Networks (LV), with 5 Clamps from TECMARQUES, is used in maintenance of de-energized low voltage overhead lines. It allows connecting the phase conductors to the neutral conductor, establishing the short-circuit with a single movement of the electrician. Built with a Ø 25 mm tube, aluminum clamps and rubber drips to delimit the grip region, facilitating handling. The fixation clamps, connected to the conductors by means of pressure springs, ensure quick installation without damaging them.
Models
Especificações
Models
| Reference | Description |
| TM12020101 | Temporary earthing stick for secondary mains (LV), 5 clamps |
Especificações
| Reference | Overall Length (mm) | Number of Jaws | Minimum Connection Capacity (mm) | Maximum Connection Capacity (mm) | Approx. Weight Kg | Approx. Weight lb |
| TM12020101 | 1400 | 5 | Ø 3,50 | Ø 19,50 | 1,40 | 3,09 |
| Reference | Description |
| TM12020101 | Temporary earthing stick for secondary mains (LV), 5 clamps |
| Reference | Overall Length (mm) | Number of Jaws | Minimum Connection Capacity (mm) | Maximum Connection Capacity (mm) | Approx. Weight Kg | Approx. Weight lb |
| TM12020101 | 1400 | 5 | Ø 3,50 | Ø 19,50 | 1,40 | 3,09 |
